Asciify user guide

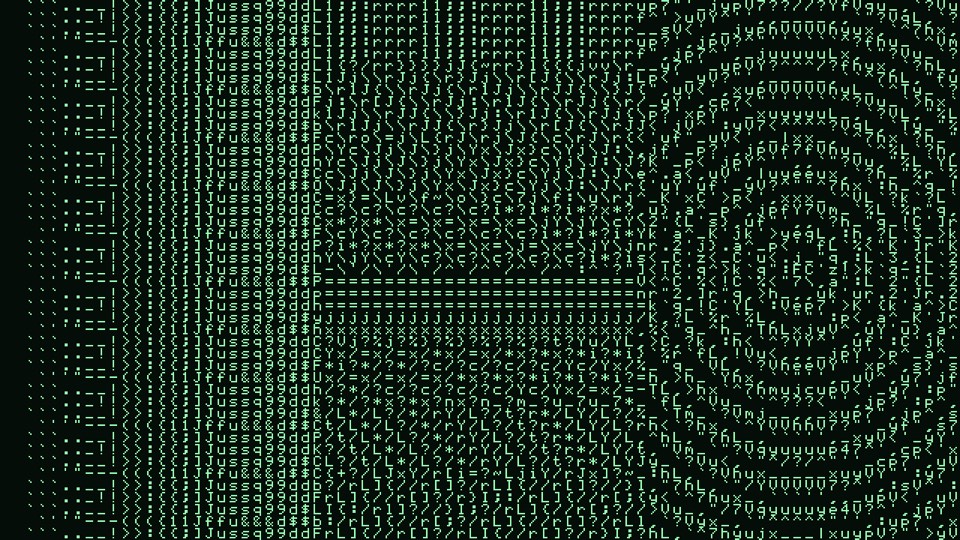

Asciify is an ASCII art renderer for Resolume Arena and Avenue, as an FFGL effect. It divides the frame into character cells and replaces each one with the character that stands in for it best.

The thing that makes it different from every other ASCII effect is what “best” means. Most of them are a brightness ramp: measure a cell, look the value up in a hand-written string like " .:-=+*#%@", print that character. Asciify treats a cell as a small picture and matches the character whose ink is distributed most like it — how much ink there is and where it sits. So edges pick up characters that lean the right way, and a diagonal comes out as slashes rather than as a smudge of mid-grey punctuation.

Before you rely on this: the character matching is verified numerically. The plugin renders at exactly one output pixel per glyph pixel, the chosen characters are read back out of the frame, and they are compared against an independent C++ implementation of the same matching — 43 runs of 960 cells across every character set, with zero disagreements. Both the macOS universal bundle and the Windows x64 DLL build in CI.

Still open: it has never been loaded into Resolume. Everything about how the controls present in the host is untested, in particular whether the Custom Set text field appears at all. Performance has never been measured. Try it on a spare layer before you put it in a show.

This codebase was created with AI assistance, directed and reviewed by a human author.

Installing

Drop the plugin bundle into Resolume’s FFGL folder and restart Resolume:

macOS    ~/Documents/Resolume Arena/Extra Effects/
         (or /Users/Shared/Resolume Arena/Extra Effects/)
Windows  %USERPROFILE%\Documents\Resolume Arena\Extra Effects\

Avenue uses the same layout under its own folder name. Asciify then appears in the effects browser.

Needs Resolume Arena or Avenue 7.3.1 or newer.

On macOS the build is unsigned, so Gatekeeper may quarantine it:

xattr -dr com.apple.quarantine ~/Documents/Resolume\ Arena/Extra\ Effects/Asciify.bundle

Start here: Columns and Structure

Two controls do most of the work.

Columns is how many characters across, from 8 to 320. Rows follow from it automatically, so the cells stay square and the characters are never stretched. Coarse is a look; fine is a rendering technique. Around 60–100 columns reads as a terminal; below 30 the picture becomes an abstraction; above 200 it starts to read as texture rather than as type.

Structure decides how much the shape of a cell matters against its weight.

At 0 it is the classic ASCII ramp — every cell gets the character of the correct weight and nothing else is considered. There is no separate mode for this; it is what the matching reduces to when shape is given no allowance.
Wind it up and the match is allowed to depart from the correct weight in order to get the direction right. Edges start choosing /, \, | and -; curves get traced.

Most of the visible change happens in the first quarter of the slider. That is not a fault — the smallest amount of shape matching is already enough to settle every close call in the ramp, and the rest of the travel decides how far it may stray in tone.

If you only ever touch two controls, make them these.

The alphabets

The Characters control picks which characters are allowed to appear. They behave differently enough to be worth knowing:

Set	What it is good for
ASCII	All 95 printable characters. The default, and the most detail.
Letters / Digits / Symbols	Narrower looks. Digits read as a readout; letters as text that is not text.
Classic ramp	The ten characters everybody uses. A recognisable, coarse, retro look.
Binary	`0` and `1` only. Two tones, so lean on Dither.
Blocks	Block elements. The only set that reaches solid black and solid white, so it is by far the most photographic — and the best starting point if the ASCII set looks washed out.
Box drawing	Lines and corners. These all weigh about the same, so this set is chosen almost entirely on structure. Turn Structure down here and the picture falls apart, which is the clearest demonstration of what that control does.
Custom	Whatever you type into Custom Set.

You do not have to order a custom set from dark to light. The plugin measures the ink in every character it draws and works the ordering out — so "@#*. " and " .*#@" give exactly the same picture. Anything the font cannot draw is skipped, and an empty result falls back to ASCII rather than rendering a blank frame.

UTF-8 works, so block characters (░▒▓█▀▄▌▐) and box drawing (─│┌┐└┘├┤┬┴┼╱╲╳) can be mixed into a custom set.

Tone, and getting a picture that is not muddy

Tone is gamma and Contrast is contrast, both with the neutral setting in the centre of the slider rather than at one end. If the render looks flat, these are the first two to reach for — an ASCII set’s heaviest character is only about a third as dark as a solid block, so source material with a lot of midtone can come out as a uniform field of u and q.

Dither adds an ordered dither of exactly one quantisation step. It is doing nothing visible on the 95-character ASCII set, because a step there is tiny. On Binary, the Classic ramp or any short custom set it is the difference between a smooth gradient and four hard bands. Turn it up when the alphabet is small.

Invert swaps which end of the picture gets the heavy characters. On is printing on paper; off is glowing on a tube.

Colour

Tint fades the ink between the Ink colour and the clip’s own colour in that cell. At 0 you get a monochrome terminal in whatever colour Ink is set to; at 1 the characters carry the picture’s own colours and the effect reads as a mosaic.

Paper is what shows behind the characters, and Paper Opacity decides whether it is there at all. Set Paper Opacity to 0 and only the characters composite — everything behind the effect shows through the gaps, which is how to put Asciify over other layers rather than in place of them.

Transparent parts of the clip stay transparent either way. An ASCII render of nothing is nothing, not a field of spaces on black.

Glyph Edge

Crisp keeps the glyph’s own pixels, which is what a character on a screen actually was. It is the right answer whenever the cells are big enough to see.

Smooth filters them. Use it when Columns is high enough that the characters are only a few screen pixels across and the picture starts to shimmer — crisp pixels at that size alias badly, especially on moving footage.

Troubleshooting

The effect does nothing. Almost always a shader that would not compile, which Resolume reports as nothing at all. Check the log — it names which of the three passes failed, and records the GPU and driver next to it:

macOS    ~/Library/Logs/asciify/asciify.YYYY-MM-DD.log
Windows  %LOCALAPPDATA%\asciify\logs\asciify.YYYY-MM-DD.log

Everything is one character. The tone range is collapsed. Push Contrast up, and check whether Invert is fighting the material.

It looks washed out. Try the Blocks set, which is the only one that reaches solid.

The Custom Set field is not there. It is an FF_TYPE_TEXT parameter, which the FFGL SDK supports and Resolume’s own example plugin uses — but nobody has yet seen it render in Arena. If it is missing, the other eight alphabets all work as normal; please open an issue and say which version of Resolume you are on.

It shimmers when the footage moves. Set Glyph Edge to Smooth, or use fewer columns.

macOS says the plugin is damaged, or it never appears. Gatekeeper quarantined it — run the xattr command under Installing and restart Resolume.
