A static web page that flashes a BirdDog PLAY in Rockchip recovery mode over USB, straight from
the browser, and can also inject a .fw update package into the image so the device installs
it on first boot.
There’s no upload, no server and no vendor key. You supply your own factory .img (BirdDog
host them in their PLAY Reimage Process
folder on OneDrive, behind a Microsoft sign-in), and the loader that gets pushed over USB is
extracted from that file in the browser at run time.
Before you use this on a unit you care about: it’s partly proven on a real PLAY, not fully. The image parsing, the filesystem injection and the partition table are covered by tests against genuine vendor files. The USB half was written from rkdeveloptool’s protocol and has since been corrected against a real unit (2026-08-15): the loader push, the re-enumeration wait after it, and read-back verification all changed because of what the hardware did. That device reads back a fill pattern rather than data above a certain sector, so verification now reports anything past that ceiling as not verified instead of calling it corrupt. What no unit has been seen to do yet is boot and apply an injected
.fw. The first-boot install is the one part still unproven.This codebase was created with AI assistance, directed and reviewed by a human author.
You probably do not need this
To update a working PLAY, use the device’s own web interface. Browse to the unit’s IP address,
log in, go to the System tab, and upload the .fw there. The device installs it and reboots.
This tool is for when that isn’t an option: a unit that won’t boot, or one you’ve decided to put a different OS on.
Getting a PLAY into recovery mode
The recovery button isn’t on the outside of the case. It sits inside the 3.5 mm headphone socket. Straighten a paperclip or use a SIM-eject tool, push it gently all the way in, and you’ll feel the button click.
- Power the unit off.
- Push the pin into the headphone socket and hold the button down.
- Still holding it, apply power, and keep holding for a few seconds after.
- Connect USB, then release.
The unit enumerates in either maskrom or loader mode, and the page reports which and handles both.
If it boots normally instead, the button wasn’t held down far enough or long enough. The socket is deep and the button is right at the bottom.
Windows needs Zadig to rebind the device to WinUSB, because Rockchip’s own driver claims it and the browser can’t reach it after that. macOS needs nothing. Linux needs a udev rule.
The four things it can do
Flash a factory .img |
Whole device: bootloader, u-boot, trust, kernel, DTB, rootfs, partition table. The brick-recovery path. |
Inject a .fw |
Parks the package in the unused tail of the rootfs partition and adds a one-shot service that installs it on first boot via the device’s own updater. |
| Write individual partitions | The opposite job: put a replacement OS on a unit, writing only the partitions you name and leaving the rest — including the vendor’s recovery partition — untouched. |
| Verify | Optional read-back and compare of everything written. |

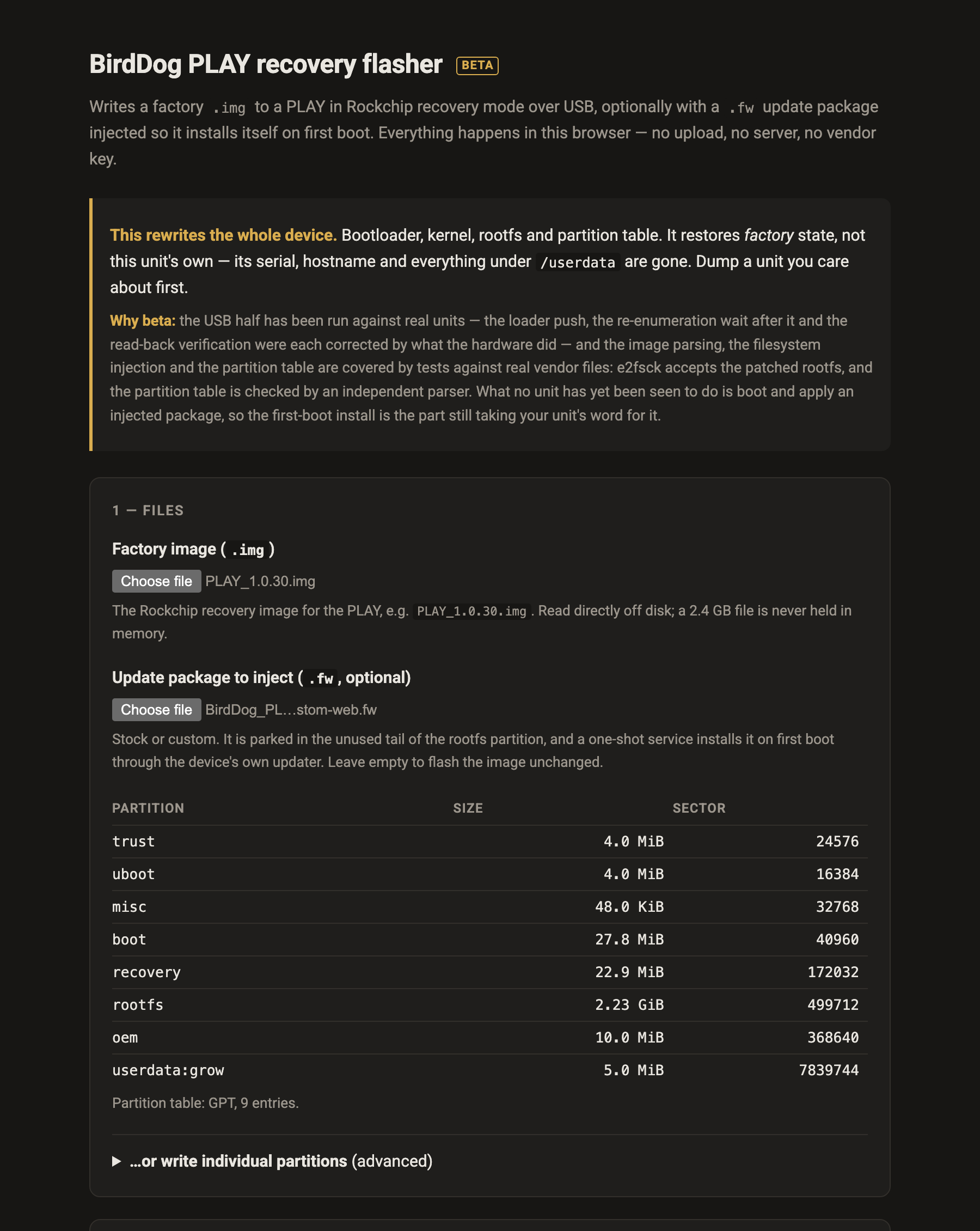

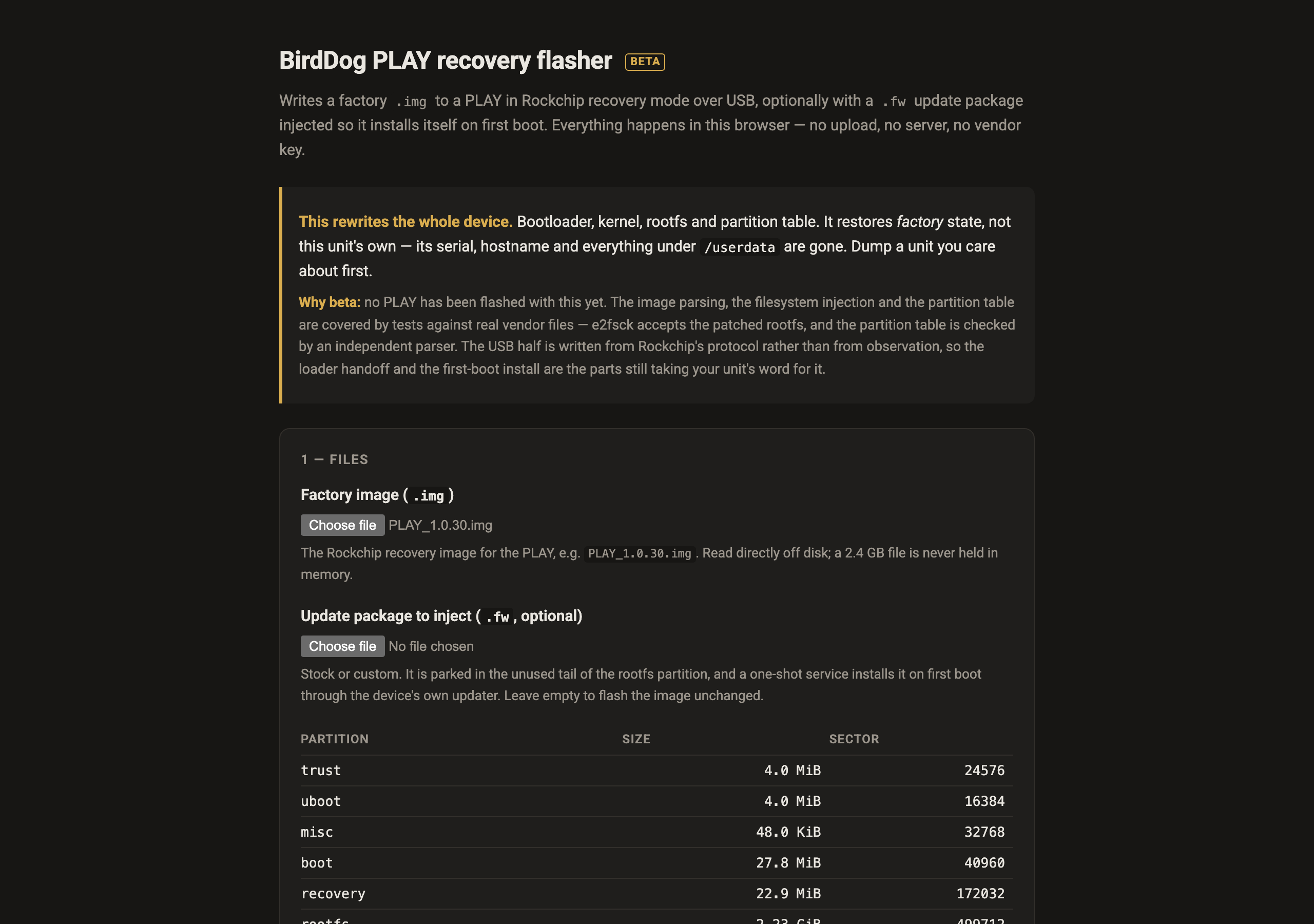

The image is read off disk in slices and never held in memory, so choosing a 2.3 GB file costs nothing.
Writing individual partitions
Restoring a factory image and installing a replacement OS are different jobs, and this does the second. Give it one file per partition and it writes those and nothing else.
Two things make it safer than the dd-at-an-offset it replaces:
- It aims using the partition table read off the device, not a sector number copied out of a parameter file. A number in a script is right until it meets a unit that’s already been reflashed, or isn’t a PLAY at all, and that’s the very case where a 3.5 GiB write at a plausible offset does real damage. The table is read, the header checksum verified, partitions matched by name, and a file too large for its target is refused rather than truncated.
uboot,trustandrecoveryare refused by default. They’re what loader mode and the vendor’s restore depend on. You can write them, but only by ticking an override on purpose, because getting them wrong is the difference between “flash it again” and “this unit is gone”.
It needs the device in loader mode: a maskrom device can’t serve the reads used to fetch the partition table until a loader has been pushed into it, and the loader comes out of a factory image.
Everything not listed is left just as it was, and that’s what keeps the factory recovery path there for you after you’ve replaced the OS.
Why injection works
A .fw isn’t a partition image. It’s an archive whose installer script runs as root on a
booted device, and in maskrom mode there’s no OS to run it, so it can’t just be flashed.
Two facts from the factory image make the injection clean:
- The rootfs partition has a 1.26 GiB hole. The partition is 3.5 GiB and the filesystem image is 2.235 GiB, and nothing ever grows into it: only the userdata partition grows. The package lives there as raw bytes, costing no filesystem space.
- The rootfs is plain ext2, with no journal, no extents and no metadata checksums. So three
small files can be added to it correctly from JavaScript, and
e2fsckagrees.
On first boot the injected service reads the package back off the partition, hands it to the device’s own updater the same way the vendor’s network path does, waits, and reboots.
It marks itself done before installing, so a package that kills the box can’t reinstall itself on every boot.
If something is wrong
| Symptom | Cause |
|---|---|
| The unit boots normally instead of entering recovery | The button was not held long or far enough. The socket is deep. |
| The browser cannot see the device (Windows) | Rockchip’s driver has claimed it. Rebind with Zadig. |
| A partition write is refused | Either the file is too large for its target — refused rather than truncated — or it is uboot, trust or recovery, which need the override. |
| The partition table cannot be read | The device is in maskrom mode. A loader has to be pushed first, and it comes out of a factory image. |
| An injected package did not install | It marks itself done before installing, deliberately. Read the device’s own updater log. |
