What it does
A screen spanning a 2.6 mm main wall and a 5.2 mm side wall has two output groups, one with half the pixel density of the other. Drive them from one canvas at 1:1 and a layer crossing the join changes physical size the moment it crosses: same pixels, twice the millimetres.
LivePremier's answer is pitch compensation, a ratio per output group saying how much canvas each group's raster is worth. The manual gives it four sentences and doesn't say which way round the ratio goes, what the field will hold, or what happens when the answer isn't a round number. All three matter, and this works all three out.
It'll also argue with you about the reference. The ratio scales a raster up into canvas pixels, so the reference should be the group with the most pixels per millimetre. Every other group then lands above 1.000 and scales down, which a video processor does well and nobody notices. Pick a coarse group instead and the fine wall lands below 1.000, gets handed fewer canvas pixels than it physically has, and spends the whole show upscaling, visibly, on the best-pitch surface in the room.

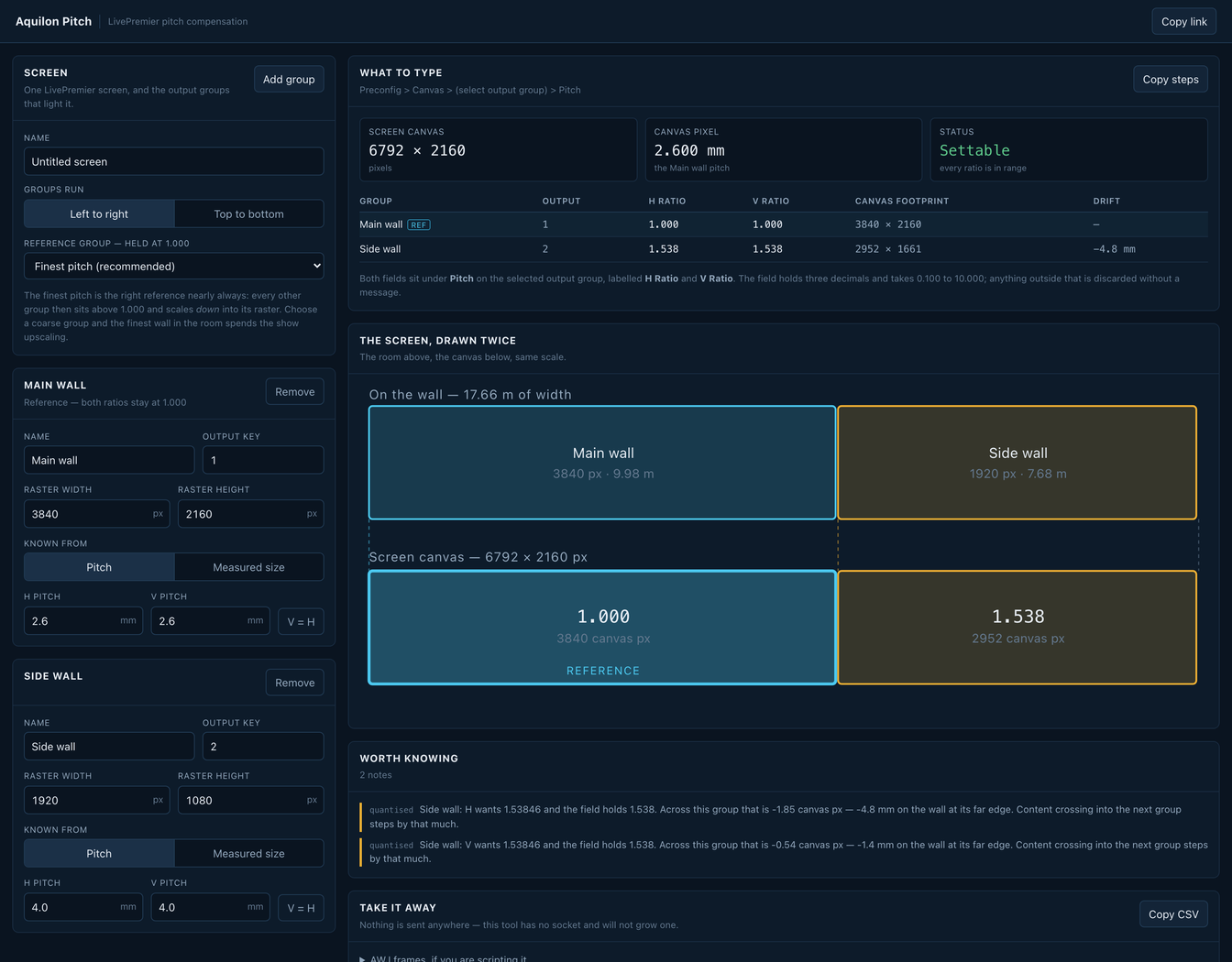

- H and V ratios ready to type into Web RCS, from each group's raster and pitch — or from its measured size, with the pitch falling out
- The canvas footprint each output group takes, and the screen canvas that results
- The error the device's three-decimal ratio field costs you, in millimetres, at the far edge of each wall
- Defaults to the finest wall as the reference, and says so when you override it
- Runs entirely in the browser with no backend, so a client's set design is never uploaded anywhere
- Self-hostable as a container image, with a compose file and an Unraid template
