Relay user guide

Relay is an A/B cut made by a relay, bounce and all, as an FFGL mixer for Resolume Arena and Avenue. It cuts between this layer and the layer below the way a relay-switched router did: the layer’s opacity fader is the coil, with hysteresis; the contacts bounce, so the frame the switch lands on is cut into bands of the old picture, black and the new one; the monitor has to re-lock to the new source, so the picture rolls and settles; and the open contact is a capacitor, so the other picture’s edges leak through. Nothing dissolves.

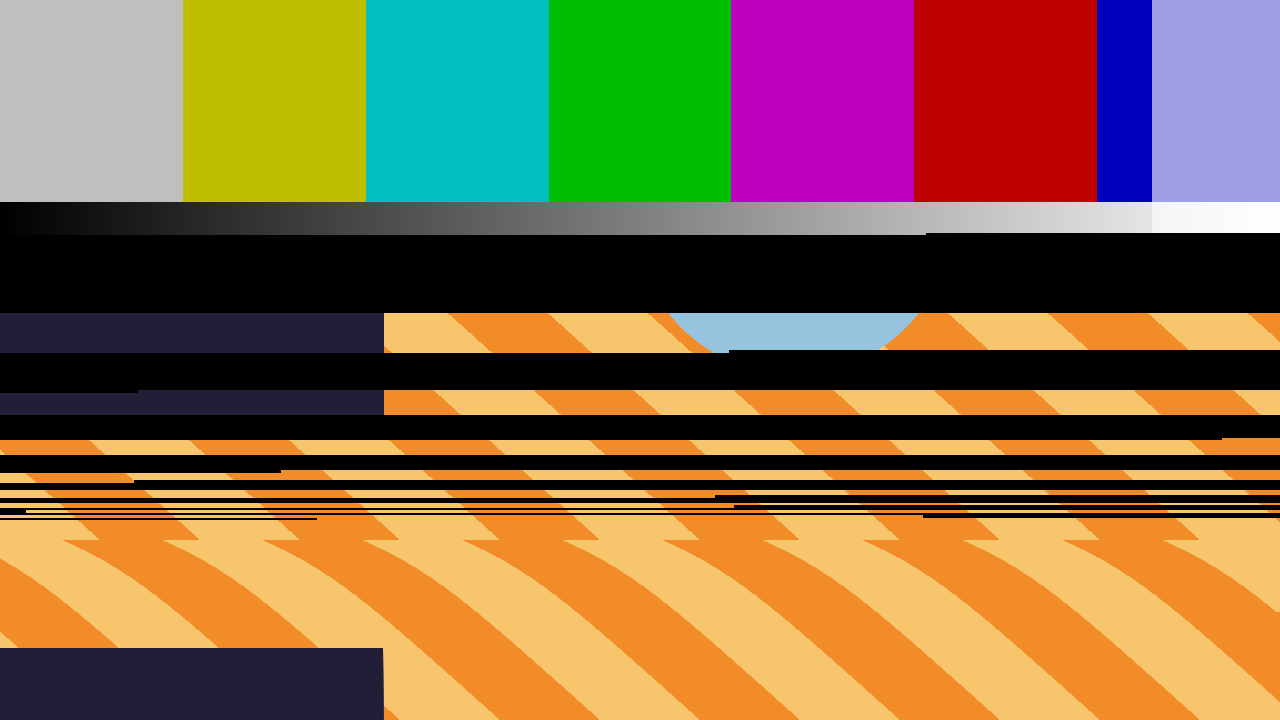

The repo’s two test cards through the plugin on the frame the switch lands on: Operate Time 6 ms, Bounce Time 2 ms, Restitution 0.63. Rendered by the offline harness, not captured from Resolume. The top was scanned while the relay was still on A; the black bands are the open contact in flight; below each is B, arriving, and rolled, because the monitor has not pulled B’s field phase in yet.

Before you rely on this: released at v0.1.0, and honestly early. The relay is measured, not just asserted. An offline harness drives the real plugin with two inputs at two different sizes, on the GPU and on Apple’s software renderer. The switching frame’s bands sit where the bounce schedule puts them, with every pixel away from a cut exactly right and all 16 contact events seen within one line’s blanking of when they happened. The coil switches at Pull-in on the way up and at Drop-out on the way down, 41 of 41 frames bitwise. The re-lock follows the second-order step response to 0.002 rows over 150 frames. The crosstalk doubles per octave to 0.013. Every check carries a negative control that fails. All 17 controls the harness can sweep change the picture. It has never been loaded into Resolume on macOS. On Windows, a build of v0.1.0 loads in Resolume Arena 7.27.1, is offered as a layer’s Blend Mode and as a transition, is driven by the layer’s opacity fader and by a layer transition, and hides only Standard, as designed — on software rendering, and no picture of it inside Resolume has been captured, so a correct render there is not yet shown. Try it on a spare layer first, and please report anything that misbehaves.

This codebase was created with AI assistance, directed and reviewed by a human author.

Installing

Download the build for your platform. For macOS there is a universal .dmg or .zip (Apple silicon and Intel), Developer ID-signed and notarised so the bundle simply loads (the signing happens on the maintainer’s Mac shortly after each release is published, so a download made in the first minutes may need Open from the context menu once), and for Windows an x64 installer or .zip. Every download carries one mixer, SW Relay. Put it in Resolume’s FFGL folder, then restart Resolume:

macOS    ~/Documents/Resolume Arena/Extra Effects/
Windows  %USERPROFILE%\Documents\Resolume Arena\Extra Effects\

Avenue uses the same layout in its own folder. It really is Extra Effects, even though this is a mixer: Resolume has one FFGL plugin folder, and sources, effects and mixers all load from it. There is no Extra Mixers.

A mixer does not appear in the effects browser. In Resolume it appears in a layer’s Blend Mode list, beside Resolume’s own blend modes (the same list Resolume uses for transitions). Choose SW Relay as the blend mode of the upper layer.

The Windows builds are not code-signed. Plugin files are not gated the way .exe files are, so Resolume loads them as normal; only the installer trips SmartScreen, once: More info → Run anyway.

It is a mixer, not an effect

An effect gets one picture. A mixer gets two, and Relay needs both:

To patch it, put one clip on a layer and the clip you want to cut to on the layer above it. Then set the upper layer’s Blend Mode to SW Relay. Handed only one picture, the plugin declines to draw.

The two layers do not have to be the same size. Each input is read at its own resolution.

Start here

The layer’s opacity fader is the coil. Relay’s fader is a parameter called Opacity, and Resolume drives a mixer parameter of that name from the layer’s own opacity fader. So once SW Relay is the upper layer’s blend mode, that layer’s opacity is the coil voltage: push it up past Pull-in (0.7 by default) and the relay cuts to this layer; pull it down past Drop-out (0.3) and it drops back to the layer below. In between, nothing happens: there is no half-way picture, and a fader parked at 0.5 stays wherever the relay last was.

When you first choose SW Relay, you see this layer. Opacity defaults to 1 (the coil energised), and in Resolume the layer’s fader is usually at 1 anyway, so a mixer dropped on a layer at full opacity shows that layer, which is what a layer at full opacity does. Pull the fader down past 0.3 to see the layer below.

Then, in this order:

1. Cut. Move the fader from 0 to 1 and back, slowly. The cut lands at 0.7 on the way up and 0.3 on the way down, and each cut is followed by a roll: the picture is not genlocked by default, so the monitor pulls the new source’s field in over about half a second.
2. Bounce Time and Restitution, high. Cut again and watch the frame the cut lands on: bands of the old picture, black and the new one, across the top part of the frame. It is one frame, so it is brief; Resolume’s freeze on a clip will not hold it, but a screen recording will.
3. Genlocked on, and Switch Point set to Vert Interval. Cut again: nothing rolls, and the bounce lands in the blanking, so the cut is clean. That is the good router.
4. Crosstalk up. The picture you are not looking at ghosts through, edges first.

Raster

Standard: PAL (625 lines, 50 fields) or NTSC (525 lines, 59.94 fields). It sets the line period and the number of active lines the host frame is scanned as, which is what turns milliseconds of bounce into lines of picture. Resolume Arena does not show a mixer’s first parameter, and Standard is first on purpose, so in Resolume it is always PAL; the difference is the height of the bands (a 1 ms flight is 15.6 lines at PAL and 15.7 at NTSC). NTSC is reachable in other hosts and in the offline harness.

Switch Point: Anywhere (the default) lets the contact break wherever the scan happens to be when the operate time is up, so the bands land somewhere down the frame, cut mid-line at the pixel where the contact moved. Vert Interval waits for the blanking before the next field, so the break is at the top of the frame and the bounce runs down from line 1. With a bounce shorter than the blanking, the whole switch happens where nothing is drawn, and the cut is clean.

Coil

Opacity: the coil voltage. In Resolume this is the layer’s opacity fader, and the mixer’s own Opacity control is overridden by it; see Start here.

Pull-in (0.7) and Drop-out (0.3): the two thresholds. Up past Pull-in the coil energises and the relay goes to B; down past Drop-out it de-energises and goes to A. Set Drop-out above Pull-in and the drop happens at the pull-in instead: a relay without hysteresis.

Operate Time (0 to 40 ms; 8 ms by default): from the coil crossing a threshold to the contact leaving its rest. A small telecom relay operates in 5 to 15 ms. With Switch Point Anywhere this is what decides where in the frame the break lands: the scan has moved on by that much since the frame began. The same time is used for release, which real relays do faster.

Select: a switch that inverts what an energised coil selects, so at a fader of 1 it swaps the two pictures. Take: a button that does the same once per press. Both are for a host that does not drive Opacity; in Resolume they still work, on top of the fader. A change of either is a switch, with its own bounce and roll.

Contacts

Bounce Time (0 to 4 ms; 1 ms by default): the first bounce interval, and the flight from the broken contact to the made one, which is taken to be the same length. A PAL line is 64 µs, so 1 ms is about fifteen lines.

Restitution (0 to 0.9; 0.45 by default): each bounce interval is the previous one times this. Each interval is half closed (B shows) and half open (black), so the bands shrink down the frame by this ratio until one is shorter than a line, where the schedule stops. The whole bounce lasts the first interval divided by one minus this: 4 ms and 0.9 is 40 ms, most of a frame; 1 ms and 0.45 is under 2 ms.

Open Level (0 by default): what an open contact shows. 0 is black, a signal of black rather than transparency; higher is grey. The open contact is opaque whatever the two pictures’ alpha.

Sync

Genlocked (off by default): on, the two sources share field timing and the new picture arrives locked. Off, the new source’s field is Phase Offset away (0 to 1 of a field; 0.25 by default), and the monitor’s vertical PLL has to pull it in: the picture appears rolled by that much and settles as a second-order step response.

Lock Time (0.05 to 2 s, geometric; 0.32 s by default): the loop’s natural period. The roll takes about four periods divided by the damping to settle.

Damping (0.1 to 2, geometric; 0.45 by default): below 1 the picture overshoots and rings; at 1 it is critically damped; above 1 it creeps in. At the defaults it overshoots once and settles in about half a second; at Lock Time 2 s and Damping 0.1 it swings up and down the picture for ten seconds.

The line PLL is a look, not a model: the first lines after the rolled source’s own vertical interval are thrown sideways by up to 3% of the width, scaled by the roll, which is the tear a real monitor showed at the seam.

Crosstalk of a rolled source is not rolled: the leak reads the other picture at the pixel’s own row.

Crosstalk

Crosstalk (0 by default): how much of the unselected picture leaks through the open contact’s stray capacitance. It is a high-pass, so edges leak and flat areas do not, and the leak rises 6 dB an octave up to the corner. The value is the leak at the corner: 0.3 means 30% of the other picture’s amplitude there, less below, up to 1.4 times that well above.

Corner (0.25 to 4 MHz, geometric; 1 MHz by default): the capacitor’s corner, in the video signal’s own frequency, converted to cycles across the picture through the standard’s 52 µs active line (1 MHz is 52 cycles per picture width at PAL). Low, the whole other picture ghosts through; high, only its finest edges. The filter is realised as up to 80 taps along the line, so the time constant is clamped to 16 output pixels: at 1080p the corner cannot go below 0.37 MHz, at 4K 0.73 MHz, and below 1440 wide the whole range is reachable.

How it works: a raster scanned in time

A video frame is not a picture that appears; it is scanned, a line at a time, 64 µs a line at PAL, 18.4 ms for the active field. A relay’s events happen in milliseconds. So each event lands somewhere in the picture: the contact breaks at a line and a pixel along it, flies for a bounce time (fifteen lines of black), makes, dwells, breaks again, and so on, each flight shorter than the last, until a flight is under a line and could not cut a picture. The plugin builds that schedule on the CPU, in double precision, in seconds of real elapsed time from the host’s clock, and the shader asks one question per pixel: which line, how far along it, and so which contact the relay was on when that pixel was scanned. Everything else is a fetch from one of the two inputs.

The roll is one number per frame: the new source’s phase offset times the closed-form step response of a second-order loop at the frame’s time. Once the envelope is under a ten-millionth of the picture the roll is set to exactly zero, so the selected picture comes back bit for bit.

Each host frame is treated as one field starting at its own time, with the vertical interval just before it. The host’s frame rate and the standard’s field rate are not tied together: at 60 fps a PAL scan runs 1.7 ms past the next frame’s start, and an event in that overlap shows at the bottom of one frame and is the next frame’s starting state.

Performance

It is one pass with two texture reads, plus up to 80 reads a pixel when Crosstalk is on. The worst figures from the offline harness on an Apple M4 Max:

At this size the measurement itself costs about as much as the work, so take the ceiling, not the average. The relay’s schedule is built on the CPU once per switch and costs nothing worth measuring.

No timing has been taken inside Resolume.

If it looks wrong

Only one of the two pictures shows, whatever I do. The fader is on one side of the hysteresis. In Resolume the fader is the layer’s opacity, not the Opacity slider in the mixer’s panel; and it has to go past 0.7 or 0.3, not to them.

Moving the Opacity slider does nothing. That is Resolume overriding it with the layer’s opacity fader. Use the layer’s fader.

The cut looks like a plain cut. At the defaults it nearly is: a 1 ms bounce with Restitution 0.45 is a couple of black bands fifteen lines high on one frame, and a roll of a quarter of the picture that settles in half a second. Raise Bounce Time and Restitution for the bands, lower Damping and raise Lock Time for the roll, and raise Crosstalk for the ghost.

The bands are always in the same place. With Switch Point Anywhere they land Operate Time into the scan, from the top; change Operate Time to move them. With Vert Interval they always start at the top.

I want NTSC. Not in Resolume Arena: Standard is the mixer’s first parameter and Arena does not show it. The only visible difference is band height.

The mixer does nothing at all. A shader that fails to compile looks exactly like that. The plugin writes a small log:

macOS    ~/Library/Logs/relay/relay.YYYY-MM-DD.log
Windows  %LOCALAPPDATA%\relay\logs\relay.YYYY-MM-DD.log

It records when an instance is created, the host’s name and version and the file it was loaded from, the GL vendor, renderer and version when it is put on a layer, one line per switch saying what drove the coil, and an error line if the shader failed to compile.

Known limits

• Standard is hidden in Resolume. Arena does not show a mixer’s first parameter, so Relay puts Standard there on purpose. In Resolume it is always PAL. Checked with Relay in Arena 7.27.1 on Windows: the one hidden control is Standard.
• The fader is the layer’s opacity. In Resolume the mixer’s own Opacity slider is overridden by the layer’s opacity fader, so it cannot be set or automated separately. A layer transition does drive it (checked in Arena 7.27.1: with SW Relay as the transition blend mode, a 2 s transition is one cut at Pull-in on the way up and one at Drop-out on the way down). The autopilot triggers clips, which is that case.
• Never loaded into Resolume on macOS. In Resolume on Windows it has run only on software rendering, and its picture there has not been captured. No graphics card but the Mac it was built on has run it.
• The switching frame is one frame. Nothing in the plugin holds it; the video and the browser demo hold it for you, the plugin does not.
• The dwell, the approach flight, the tear and the settle threshold are model constants, argued in the repository’s AGENTS.md; no relay’s bounce and no monitor’s PLL were characterised.
• A switch during a switch keeps the old schedule’s events before the new break and replaces the rest.
• Output alpha is the selected picture’s, so cutting between an opaque clip and a transparent one cuts the transparency too, as a router would. The open contact is opaque.
• No presets and no OpenFX version.
• There is a browser demo at relay-demo.stoatworks-labs.com. It is a port to a web page, not the plugin: the shaders run in WebGL2 and the relay’s CPU half is rewritten in JavaScript. The page lists what it does not reproduce.

About

The last group, About, carries a credit line (name, version, licence and maker) and buttons that open this user guide, the project page, the source on GitHub and the support page in your browser.

Reporting something

github.com/stoatworks-labs/relay/issues. A screenshot, your Resolume version, the settings, the composition’s resolution and frame rate, and the day’s log are usually enough.
