squawk user guide

squawk is an open partyline intercom: the software half of a Green-Go / Bolero / Clear-Com style comms rig, where a server does the mixing and the endpoints talk and listen.

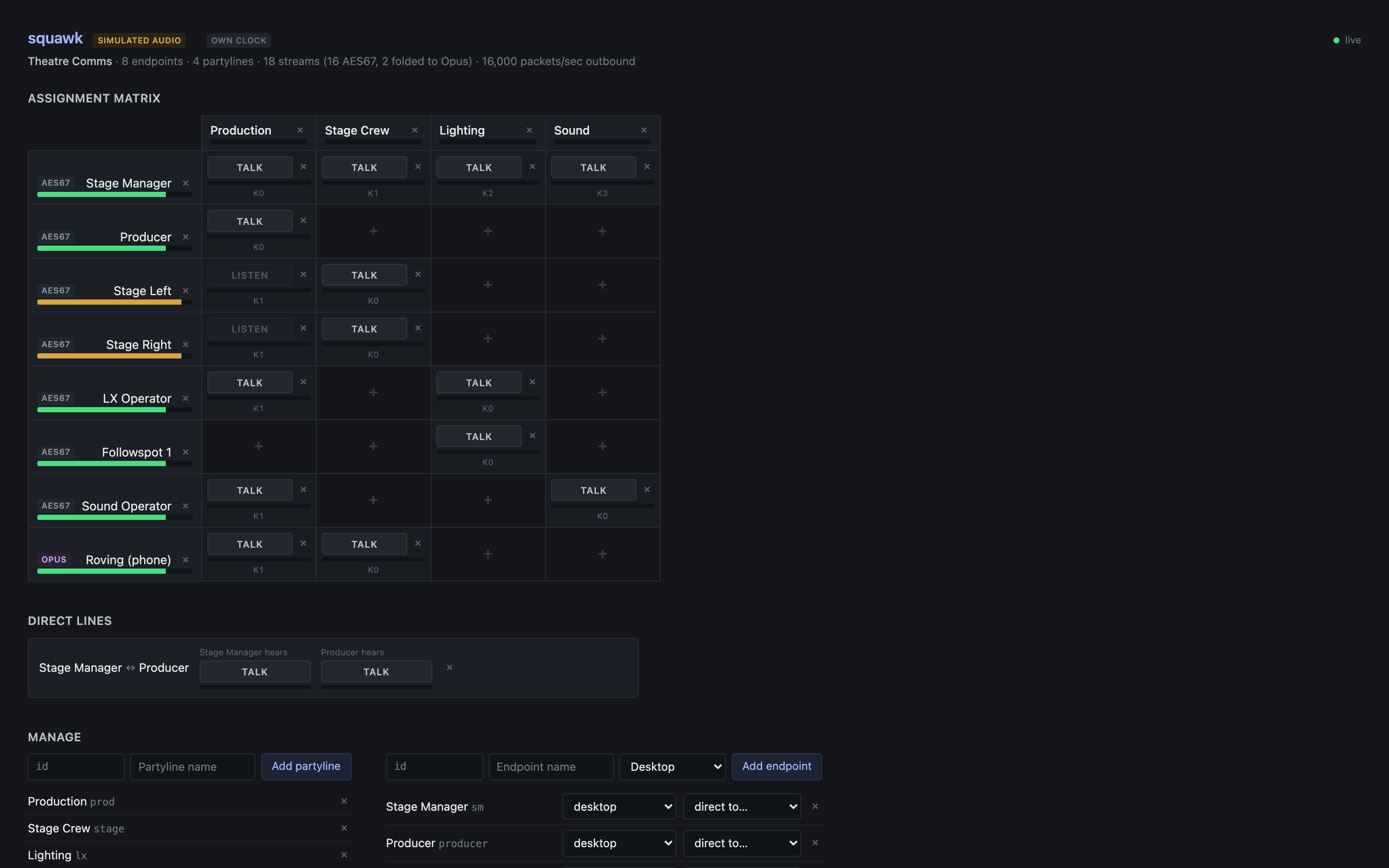

The browser UI on the example show: eight endpoints across four partylines, each key with its own talk button and a meter of what it hears, and a direct line between Stage Manager and Producer. It’s running with no interface, so the audio is synthesised tones and nothing reaches the network, as the page’s own badges say. The only rig it’s mixed so far is this machine over loopback.

Each endpoint gets up to 10 keys, and each key is its own AES67 stream carrying either a partyline (the bus, minus that endpoint’s own voice) or a direct point-to-point path. Because the keys arrive separately, a panel changes its own key levels, mutes and ear placement instantly and locally, with no round trip to the server.

Before you rely on this: audio goes in and out over real AES67 multicast, with mix-minus checked sample-exact through the round trip, and PTP drives the media clock.

But all of it has only ever run over the loopback interface, against a grandmaster this project wrote itself. There’s no SAP, no client and no hardware yet, and nothing here has met another vendor’s device, a real switch, or a microphone. It isn’t a system to put on a show.

This codebase was created with AI assistance, directed and reviewed by a human author.

What exists today

Two transports, and why there have to be two

Wired clients and hardware panels get real AES67: L24 RTP at 1 ms packet time, PTP-locked, one stream per key.

Phones, browsers and anything off the LAN get Opus over WebRTC instead, and there’s no way round that. No phone exposes PTP, and wifi multicast is transmitted at the basic rate with no retries, so AES67 over wifi doesn’t degrade gracefully. It falls apart. The server bridges the two domains.

The mix engine knows nothing about any of this, on purpose. It puts out one stream per key, and the fold-down to a stereo Opus mix happens downstream. So there’s one mixing implementation and one set of tests.

Mix-minus, and the two things that make it exact

Every member of a partyline hears the bus minus their own voice. Taken literally, that’s a separate sum per member, and it doesn’t need to be:

contribution[key]  = mic × talk_ramp × bus_trim      (once per key)
bus[p]             = Σ contribution[keys on p]        (once per bus)
feed[key on p]     = bus[p] − contribution[key]       (once per key)

The subtraction is exact, because it takes away precisely the buffer that was added: same samples, same gain, same block. Two things follow from that, and both matter:

• Every input must already be aligned into the server’s clock domain. An engine fed unaligned inputs leaks the talker back into their own ear, faintly, and nothing downstream can fix it.
• The bus trim is folded into each contribution, not applied to the summed bus. Trimming after the sum would subtract an untrimmed buffer from a trimmed one and leave (1 − trim) of the talker in their own ear, which you can’t hear at unity gain and which is a mystery at any other setting.

The output limiter sits per stream, after the subtraction, for the same reason.

What it costs, and what the real constraint is

Measured on an M-series Mac, release build, 32 endpoints × 10 keys = 320 streams, with every key talking at once, which is the worst case the engine can be put in:

1.000 s of audio mixed in 34.4 ms   (29x realtime, 3.4% of one core)

Mixing isn’t the constraint. Packet rate is. Those 320 streams at 1 ms come to 320,000 packets per second outbound, and unbatched sending measures 292,000 packets/sec on one thread, just under what a 32-endpoint system implies.

That’s the measurement that turns per-tick send batching from an optimisation into a requirement. Bandwidth is the lesser problem, at roughly 1.6 Mbit/s per stream.

Three transport details that fail quietly

The jitter buffer is indexed by RTP timestamp, not by sequence number. The timestamp is the media clock, and the sequence number is only a counter. A sequence-indexed ring scatters audio into the wrong slots at the timestamp rollover, which comes round once every ~24.8 hours at 48 kHz, so you can count on it landing mid-show.

Multicast groups are allocated sequentially from one base. IPv4 multicast copies only the low 23 bits of the address into the Ethernet MAC, so 239.69.1.1 and 239.197.1.1 become the same MAC, and an IGMP-snooping switch delivers both to anyone who joined either. Sequential allocation keeps those bits distinct.

The buffer’s capacity isn’t its latency. Depth sets the delay. Capacity is headroom for when the receiving thread gets descheduled and the socket then hands over 40 packets at once. A ring sized to the depth throws away audio it had already received.

Addressing, and the one thing to fix before deploying

Multicast groups are derived from (endpoint index, key slot), not from the engine’s stream index. The engine numbers streams sequentially, so adding a key to endpoint 0 shifts every stream after it, and addressing off that number would silently re-point every multicast group in the building every time somebody added a key in the UI.

Deriving from identity means adding a key moves nothing else.

Reordering or deleting endpoints still shifts things. The proper fix is to persist an allocation per endpoint id, and it’s worth doing before anyone deploys this.

If something is wrong
