Flock user guide

flock gives you one control panel for every BirdDog Play decoder you own.

Out of the box each Play has its own BirdUI web page — fine for one unit, painful for twenty. flock discovers them all, shows them in one place, and lets you change settings across a whole group at once.

Before you rely on this: flock has been used against both a simulated device and a real one, including live reads and a real settings write — routing an actual NDI source to a physical unit’s HDMI output. That is stronger evidence than most tools of this kind carry. It is still an early-stage project, and a successful write on one path is not proof of every path; the README’s Status section defines exactly which operations are covered.

Getting started

Run flock — as its own desktop tray app, or cargo run -p flock.
Open the web UI.
Scan network — flock probes the local subnet for Play devices.
Add the ones you want to manage. Each needs its BirdUI password.

Passwords are encrypted before being written to disk, and never returned by the API once stored. If you need to change one, re-enter it — you cannot read back what is there.

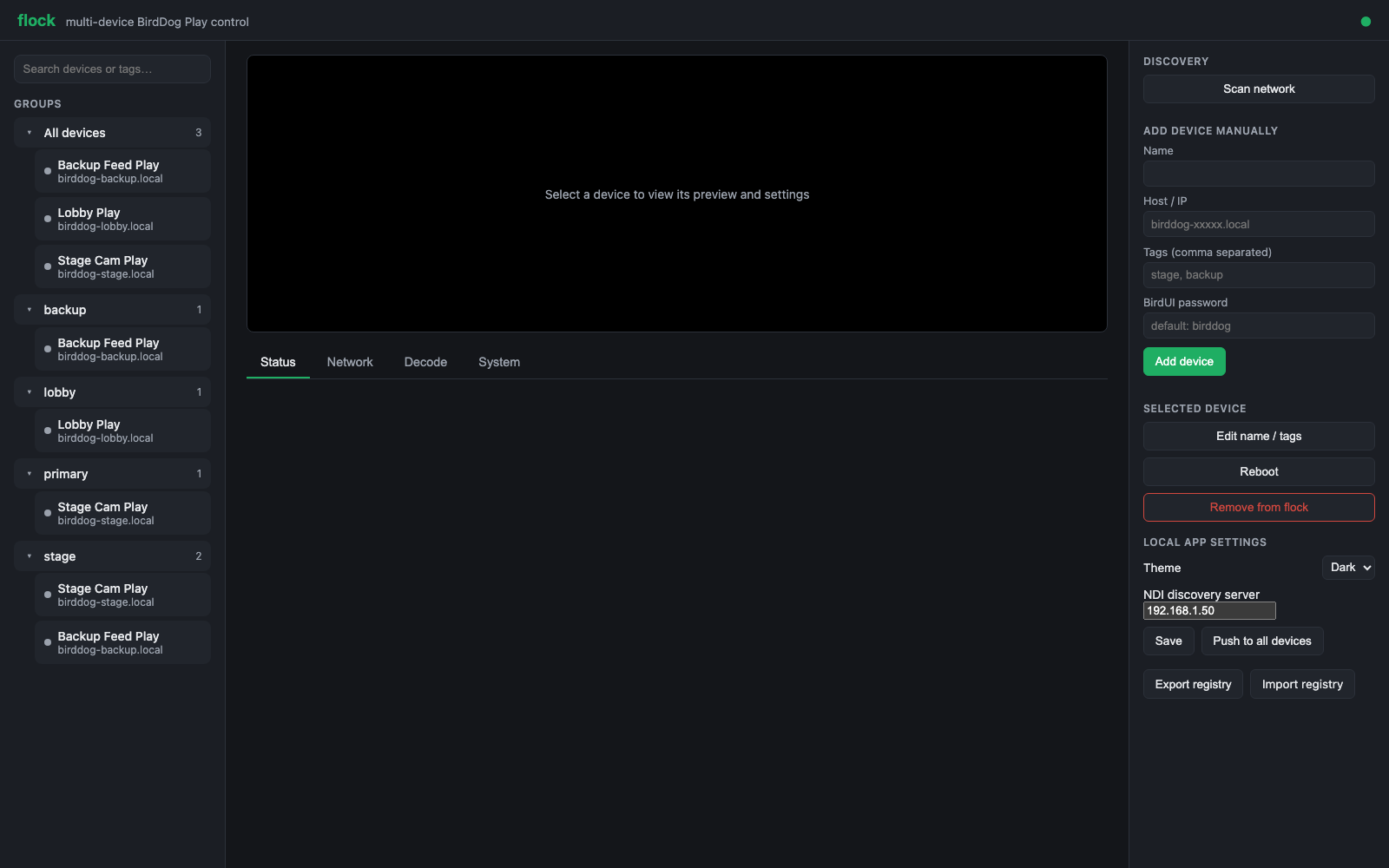

The flock window: grouped device list on the left, the selected device’s preview and settings tabs in the middle, discovery and device actions on the right.

Devices can also be added by hand — name, host, tags and password — which is the route to take when a unit is on another subnet and discovery can’t reach it.

Per-device settings

Select a device and you get its tabs:

Tab	What it covers
Status	Is it up, and what is it doing
Decode	Which NDI or SRT source it is playing. The one you will use most.
Network	Addressing, NDI transmit/receive method, multicast, discovery server
System	Device-level settings

Plus Reboot, Edit name / tags, and a preview of the output.

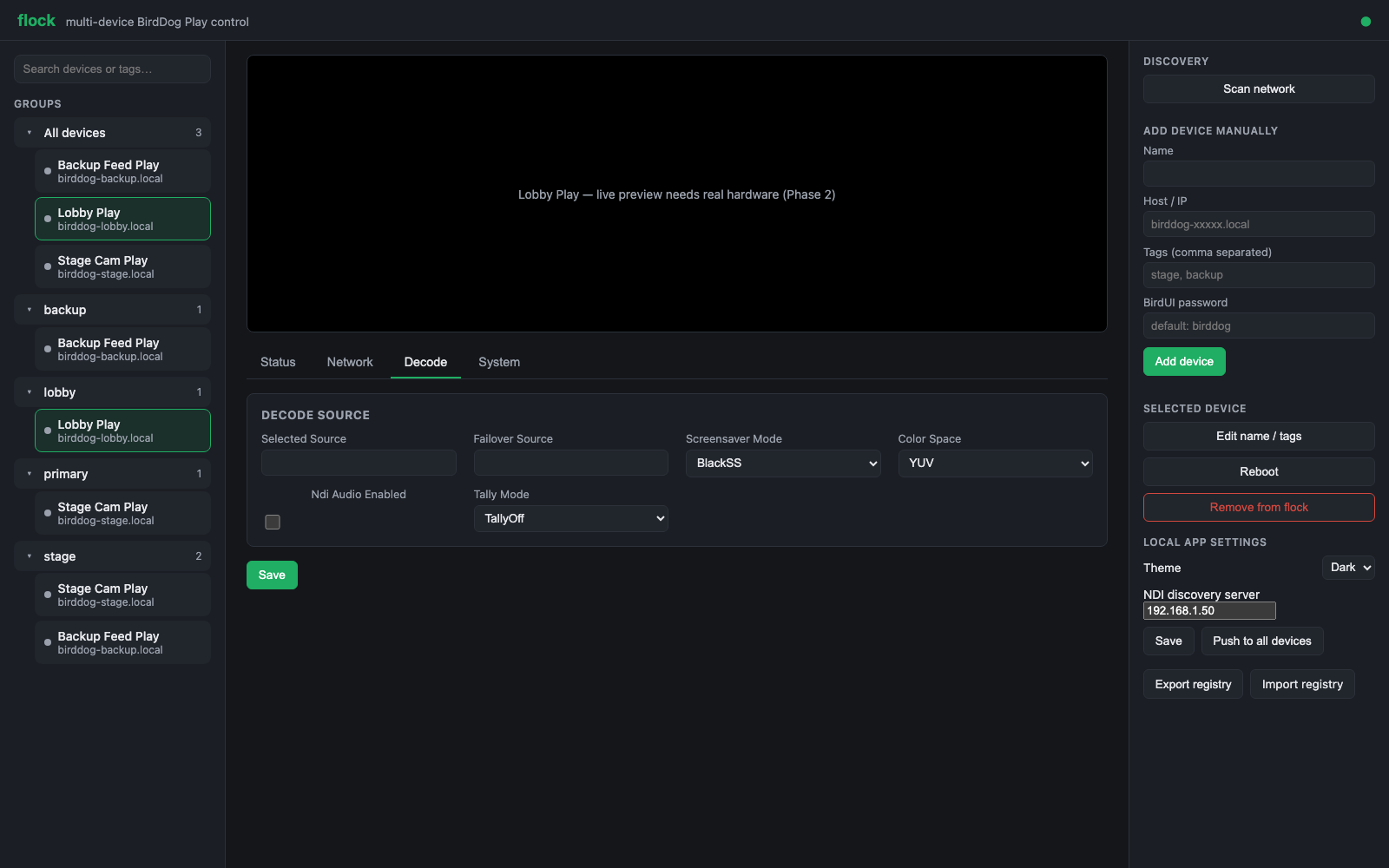

The Decode tab, where a device’s NDI or SRT source is chosen.

Groups — the point of flock

Tag your devices by room, by hall, by purpose. Tags become groups in the sidebar, and a device can be in several. Select a group rather than a device and the settings tabs become batch editors.

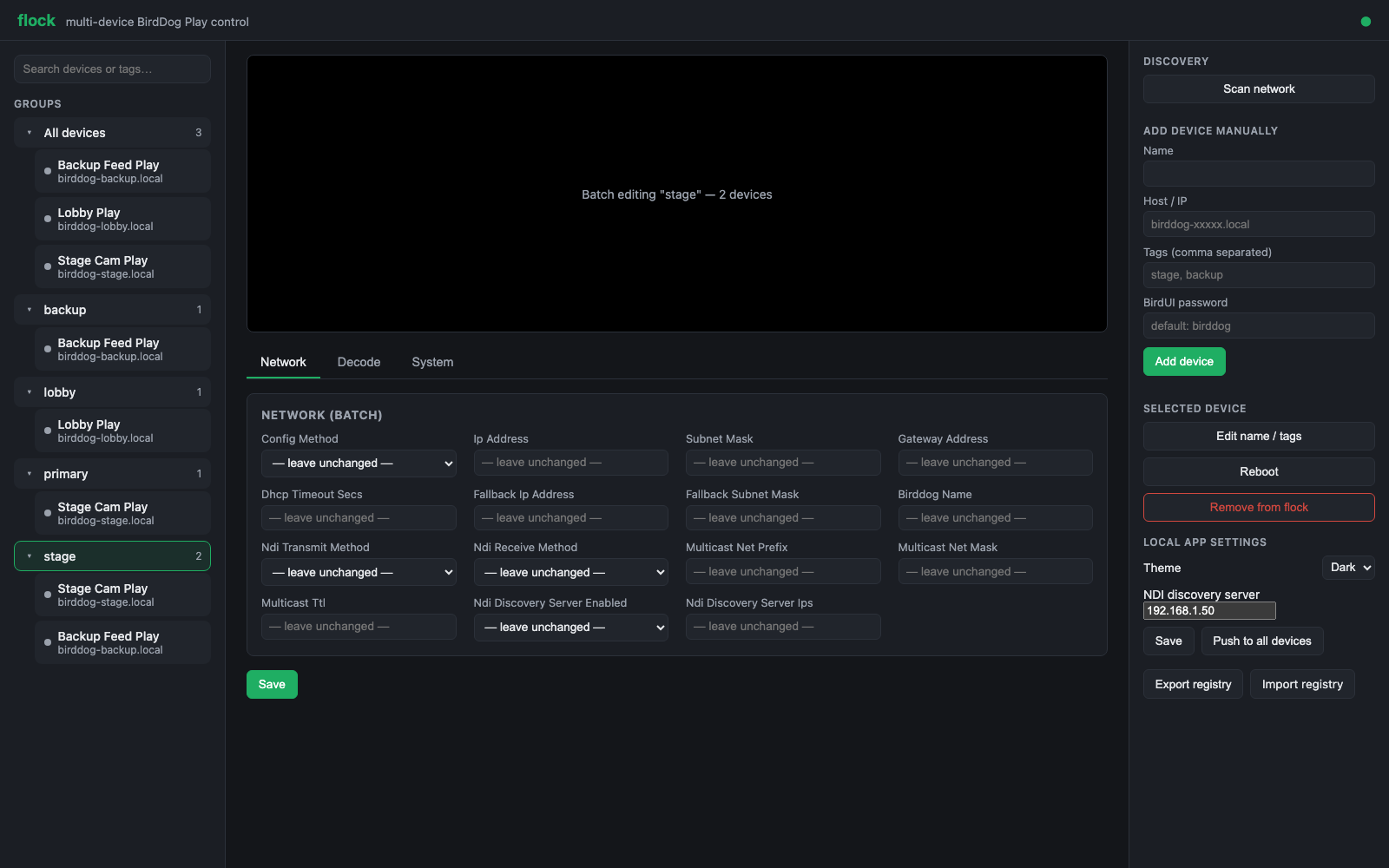

Batch-editing the “stage” group: every field defaults to “leave unchanged”, so only what you set is written.

Every field defaults to — leave unchanged —. That is the safety property that makes group editing usable: you set the two fields you mean to change, and the other fourteen are not touched on any device in the group.

Save writes to every device in the group at once. Check what is in a tag before you fire a group operation — a mistake here is multiplied by the size of the group, and these are decoders driving screens people may be watching.

Export registry and Import registry move your whole device list and tagging between machines, which is how a show file for a rig gets carried from the office to site.

Locking it down

By default flock has no login, on the assumption it is on a trusted production LAN.

To require a password, set admin_password under [web] in the config. Then every page and API call needs a session. Two things to know:

Sessions live in memory only. Restarting flock logs everyone out. That is intentional for a single-operator tool.
After 5 failed logins there is a 30-second lockout, applied process-wide rather than per client — there is only one password, so a client guessing wrong briefly pauses everyone’s next attempt.

Even with a password set, flock is designed for a trusted operations network. Don’t put it on the public internet.

Troubleshooting

Symptom	Cause
Scan finds nothing	flock and the devices must be on the same subnet. Discovery is a subnet probe, so it will not cross a router. Check for a firewall, and for client isolation on wireless.
A device shows unreachable after working	Its IP probably changed. Check the Network tab, or re-scan.
A settings write is rejected	Usually a wrong or changed BirdUI password. Re-enter it on the device.
I can’t see the password I entered	By design — redacted in every response and encrypted on disk.
A group save changed fields I didn’t touch	Shouldn’t happen: unset fields are `— leave unchanged —`. Worth reporting.
Everyone got logged out	flock restarted. Sessions are in-memory.
Login says I’m locked out	Five failed attempts triggers a 30-second cooldown, process-wide. Wait it out.

A note on care

flock writes settings to real decoders on a live network. A bad decode change doesn’t fail a test — it can black out a screen in front of an audience.

Prefer reading before writing, check group membership before group operations, and if you are developing against flock rather than operating it, use the mock device backend instead of real hardware.
